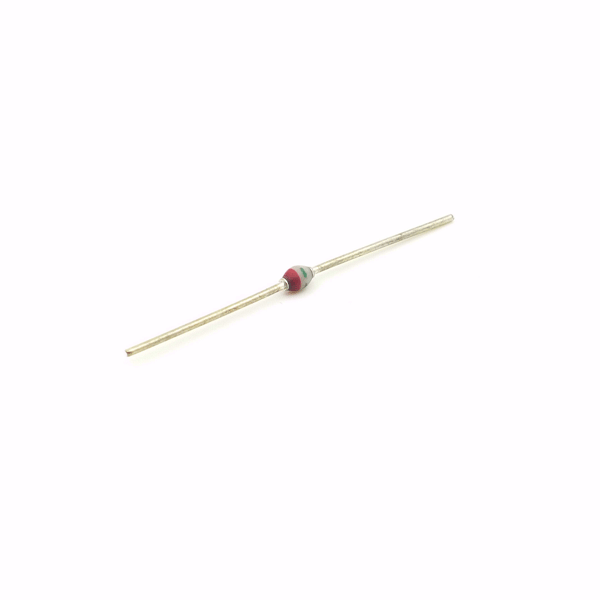

Hitachi - Fast Recovery Diode (U07N)
Features :
1) For high speed switching.
2) Diffused-junction. Glass passivated and encapsulated.
ABSOLUTE MAXIMUM RATINGS
CHARACTERISTICS(TL=25°C)
Features :
1) For high speed switching.
2) Diffused-junction. Glass passivated and encapsulated.
ABSOLUTE MAXIMUM RATINGS
| Repetitive Peak Reverse Voltage | 1500V |
| Non-Repetitive Peak Reverse Voltage | 1800V |
| Average Forward Current | 1 A |
| Surge(Non-Repetitive) Forward Current | 50 A ( Without PIV, 10ms conduction, Tj = 140°C start ) |
| Operating Junction Temperature (Tj) | -65 ~ +140 °C |
| Storage Temperature | -65 ~ +140 °C |
| Peak Reverse Current | Typ. : 2μA, Max : 10μA |
| Peak Forward Voltage | Max. : 2.5V |
| Reverse Recovery Time | Max. : 0.4μs |
