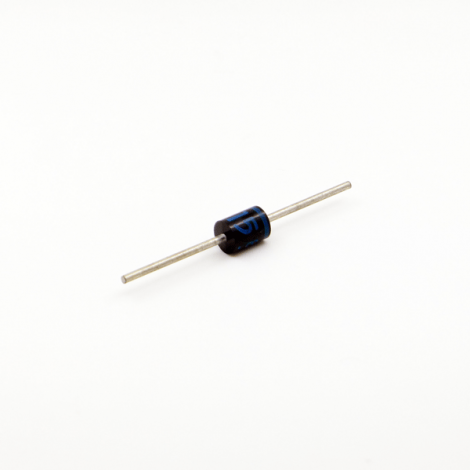

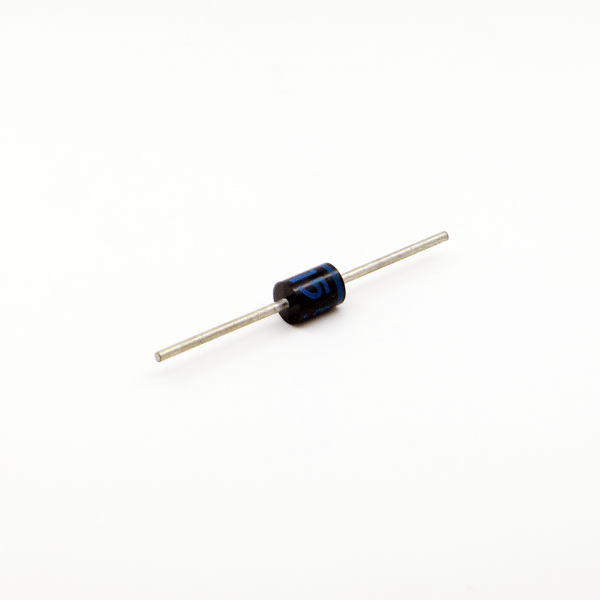

Fuji - Fast Recovery Diode (ERD09-15)
Features :
1) Large current
2) High voltage by mesa design
3) High reliability
Applications :
High speed switching
Absolute maximum ratings
Electrical characteristics (TL=25°C)
Features :
1) Large current
2) High voltage by mesa design
3) High reliability
Applications :
High speed switching
Absolute maximum ratings
| Repetitive Peak Reverse Voltage | 1500V |
| Average Forward Current | 3 A |
| Surge current | 50 A (Sine wave 10ms) |
| Operating Junction Temperature (Tj) | -40 ~ +150 °C |
| Storage Temperature | -40 ~ +150 °C |
| Forward voltage drop | Max : 1.5V |
| Reverse current | Max. : 50μA |
| Reverse Recovery Time | Max. : 0.6μs |
