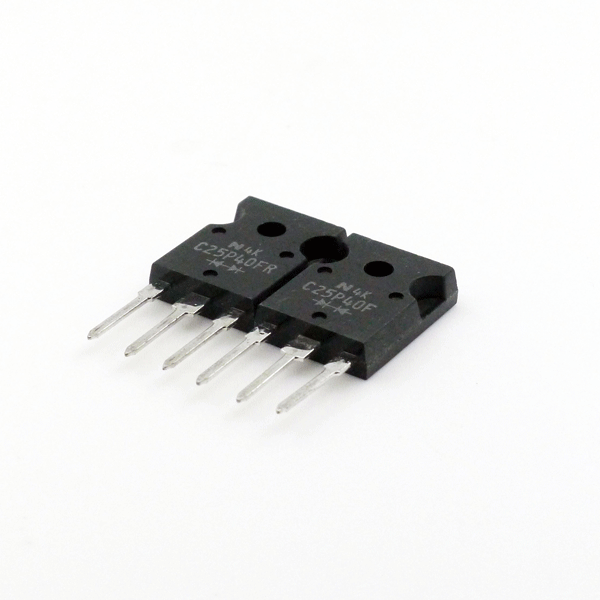

Hihon - Fast Recovery Diode (C25P40F/FR)
Features :
1) Dual Diodes - Anode Common
2) Ultra - Fast Recovery
3) Low Forward Voltage Drop
4) High Surge Capability
5) 200 Volts thru 400 Volts Type Available
Applications :
High speed switching
Absolute maximum ratings
Electrical characteristics (TL=25°C)
Features :
1) Dual Diodes - Anode Common
2) Ultra - Fast Recovery
3) Low Forward Voltage Drop
4) High Surge Capability
5) 200 Volts thru 400 Volts Type Available
Applications :
High speed switching
Absolute maximum ratings
| Repetitive Peak Reverse Voltage | 400V |
| Non-Repetitive Peak Reverse Voltage | 440V |
| Average Rectified Output Current | 25 A |
| RMS Forward Current | 28 A |
| Surge Forward current | 150 A (50Hz Full Sine wave) |
| Operating Junction Temperature (Tj) | -40 ~ +150 °C |
| Storage Temperature | -40 ~ +150 °C |
| Peak Reverse Current | Max : 50uA |
| Peak Forward Voltage | Max : 1.25V |
| Reverse Recovery Time | Max. : 50ns |
| Manufacturer | No |
