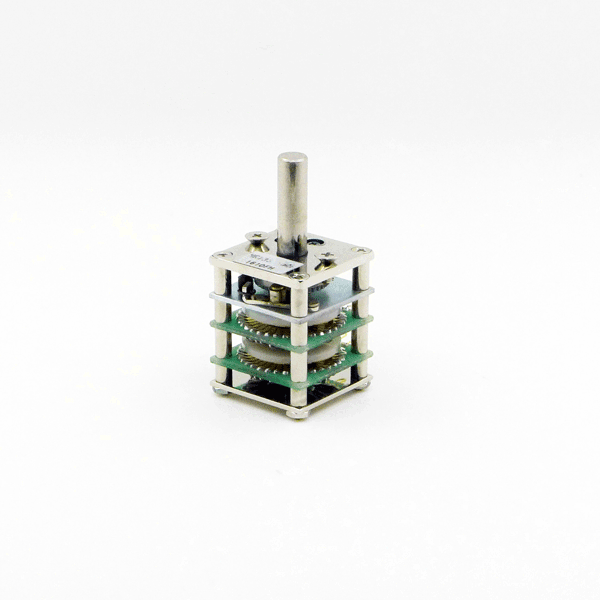

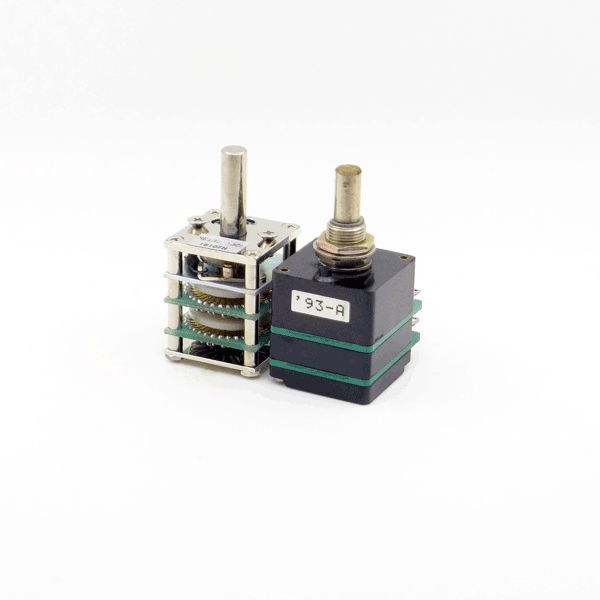

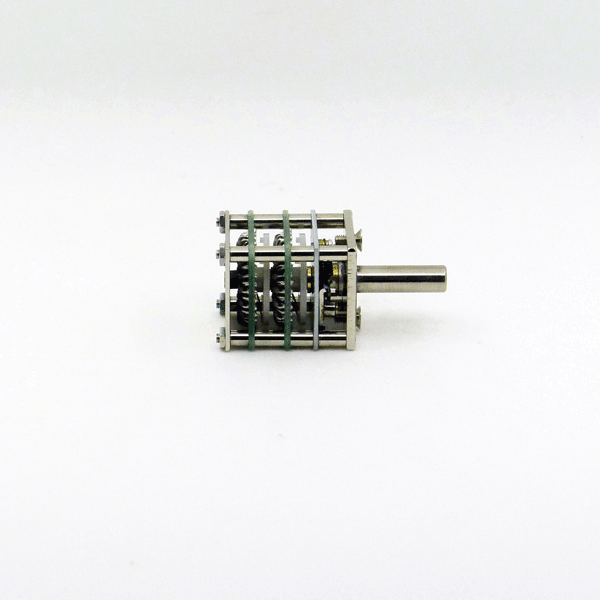

TKD 2P65CS 30 Steps Stereo Attenuator

Applications : Audio, Measurement equipment, Communication facilities
Low contact resistance : Au-plated contact materials
Small Size : 23.5mm square

Specifications
Number of circuit : Dual circuits
Circuit : Potentiometer
Stepper Type : Stepper type (With clicks)
Max attenuation : 50dB
Multiple contact : 31positions (0dB - Cut off)
Attenuation (Load: High) : 0, 1, 2, 3, ...(1dB step)… , 11, ...(1.5dB step)..., 20, ...(2dB step)...,30, 32.5, 35, 37.5, 40, 43, 46, 50, Cut off
