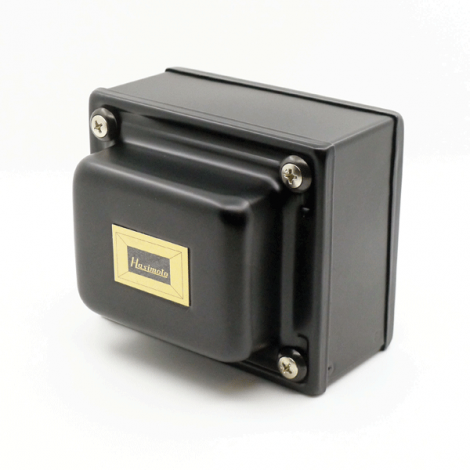

Hasimoto Power Transformer (PT-240)
Secondary :
480V-420V-240V-0-240V-420V-480V: 0.17A AC (170mA DC with Full Wave Rectifier)
0-2.5-5V: 5.5A ( x 2)
6.3V: 3A
5V: 3A
①Choke input,Full-wabe rectifier : 250mA DC
②Capacitor input,Full-wabe rectifier : 170mA DC
Suitable Tubes
①Single(stereo)、Push pull(monoral)
- 2A3, 300B, 45, PX4, PX25
②Single(stereo)、Push pull(monoral)
- PX25A, DA30, 300B
