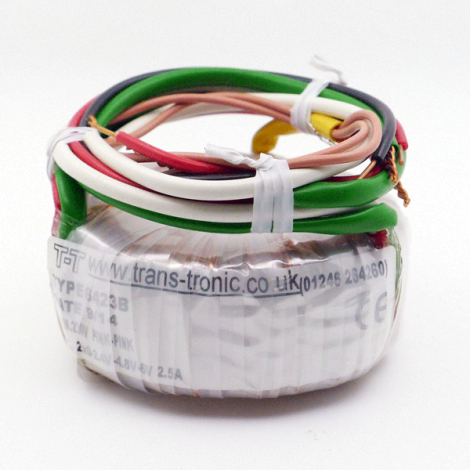

Miniature Filament Toroidal Transformer (6423B) (UK)

Power Rating : 12-30VA
Regulation : approx 12-17.5%
Lead Type : Solid
Lead Length : approx 200mm
Primary Windings: : 0-220V (pink-pink)
Secondary Windings :
- 0-2.5-5-6.3V @ 2.5A rms (black-white-green-red)
- 0-2.5-5-6.3V @ 2.5A rms (black-white-green-red)
Additional Information : Approved to EN60742,UL506&C22.2. One tap per winding used at a time at 2.5A.
Size : Diameter (70mm) x Height (34mm) (excluding leadouts & mounting kit)
Mounting Method : Steel Dished Washer x 1, Neoprene Washers x 2 and Mounting bolt
Made in UK by Trans-Tronic Ltd
