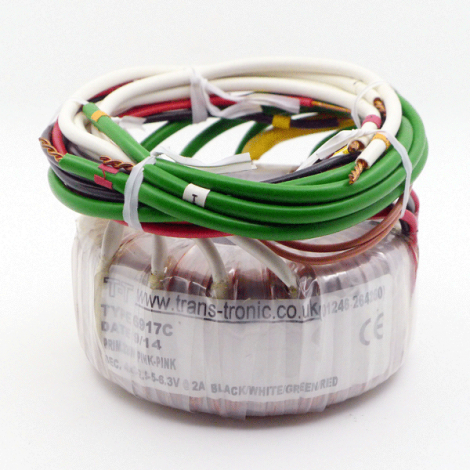

Universal Filament Toroidal Transformer (6917C) (UK)

Power Rating : max 50VA
Regulation : approx 13-16%
Lead Type : Solid
Lead Length : approx 200mm
Primary Windings: : 0-220V (pink-pink)
Secondary Windings :
- 4 x 0-2.5-5-6.3V @ 2A rms (black-white-green-red)
Additional Information : Approved to EN60742,UL506&C22.2.
Size : Diameter (81mm) x Height (39mm) (excluding leadouts & mounting kit)
Mounting Method : Steel Dished Washer x 1, Neoprene Washers x 2 and Mounting bolt
Made in UK by Trans-Tronic Ltd
