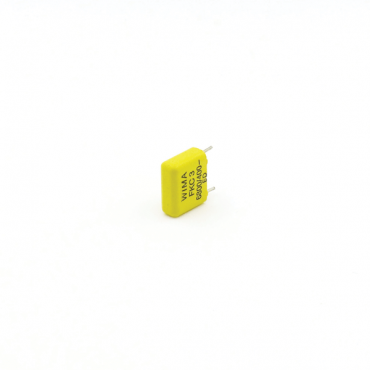

FKC3 - Polycarbonate Film and Foil Capacitors for Pulse Applications

Special Features • CECC approval certificate No. 31701-001 • Good attenuation, high resonant frequency • Almost linear capacitance temperature coefficient • Suitable for frequency determining circuits, filter and timing circuits.

Construction Dielectric: Polycarbonate film Capacitor electrodes: Metal foil

---

FKP1 - Polypropylene (PP) Capacitors for Pulse Applications with Metal Foil Electrodes, Schoopage Contacts, Double-Sided Metallization and Self-Healing Internal Series Connection for Highest Current Carrying Capability PCM 15 mm to 37.5 mm

Special Features • Extremely high pulse duty • Self-healing • Internal series connection • Very low dissipation factor • Negative capacitance change versus temperature • According to RoHS 2011/65/EU Typical Applications For high pulse and high frequency applications e.g. • Switch mode power supplies • Converters in drives and power electronics • Deflection systems in monitors and TV-sets • Electronic ballasts

Construction Dielectric: Polypropylene (PP) film Capacitor electrodes: Aluminium foil and double-sided metallized plastic film

---

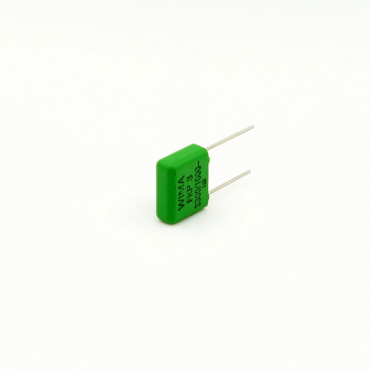

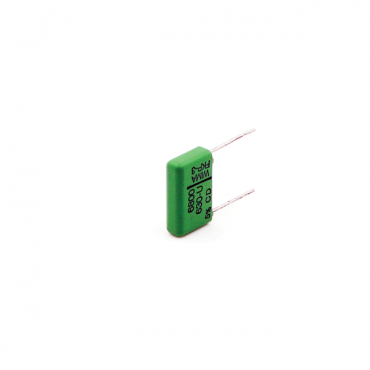

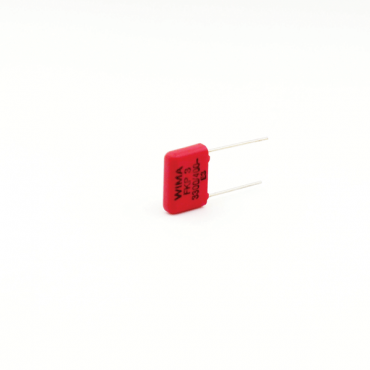

FKP3 - Polypropylene (PP) Film and Foil Capacitors for Pulse Applications PCM 7.5 mm to 15 mm

Special Features • Pulse duty construction • Very low dissipation factor • Negative capacitance change versus temperature • Very low dielectric absorption • According to RoHS 2011/65/EU Typical Applications For high frequency applications e.g. • Sample and hold • Timing • LC-Filtering • Oscillating circuits • Audio equipment

Construction Dielectric: Polypropylene (PP) film Capacitor electrodes: Metal foil
